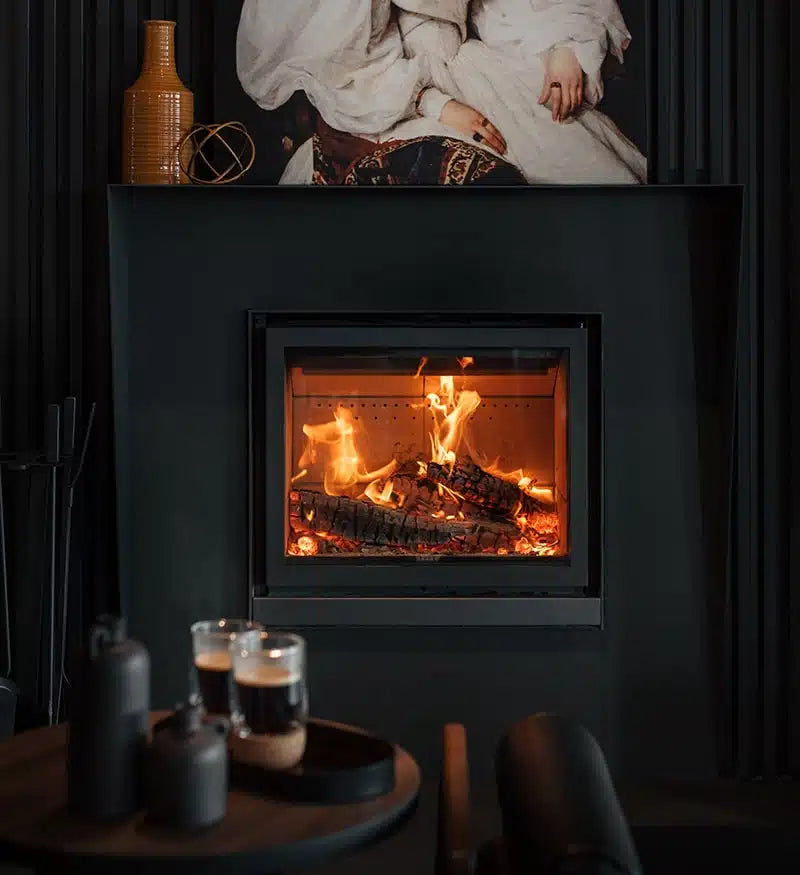

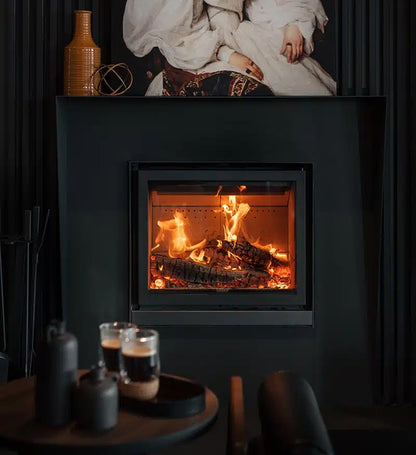

Stûv 16-Z Wood Fireplace

Product Overview

The Stûv 16-Z is the zero-clearance version of the Stûv 16, built for new construction and installed directly against framed walls without any masonry surround. Same architectural lines, same removable-key door, same automatic combustion as the 16-in insert, engineered for a modern new-build fireplace wall.

Design highlights

• Zero-clearance construction that installs directly against framed walls
• Perfectly balanced straight lines that read as architectural rather than mechanical
• Frameless hinged door opened with a removable key, so no handle is visible
• Large viewing area that maximizes the presence of the flames
• SBR (Single Burn Rate) automatic control
• EPA certified combustion
• Ships with both Ø 6″ and Ø 7″ chimney connections included
• Mandatory finishing frame specified at quote (thin-edge or picture-type)

Size options

Three chamber sizes to match the architectural plan.

• s[16]Z 58: 29 3/16″ W × 30 ⅝″ H
• s[16]Z 68: 33 3/16″ W × 30 ⅝″ H
• s[16]Z 78: 37 1/16″ W × 30 ⅝″ H

Performance by size

• 58: 27,015 BTU/h EPA, up to 65,000 BTU/h max, 71% efficiency, roughly 1,400 ft² coverage
• 68: 23,727 BTU/h EPA, up to 82,000 BTU/h max, 66% efficiency, roughly 1,650 ft² coverage
• 78: 27,092 BTU/h EPA, up to 86,000 BTU/h max, 67% efficiency, roughly 2,100 ft² coverage
