Stûv

Stûv 16-in Wood Insert

Product Overview

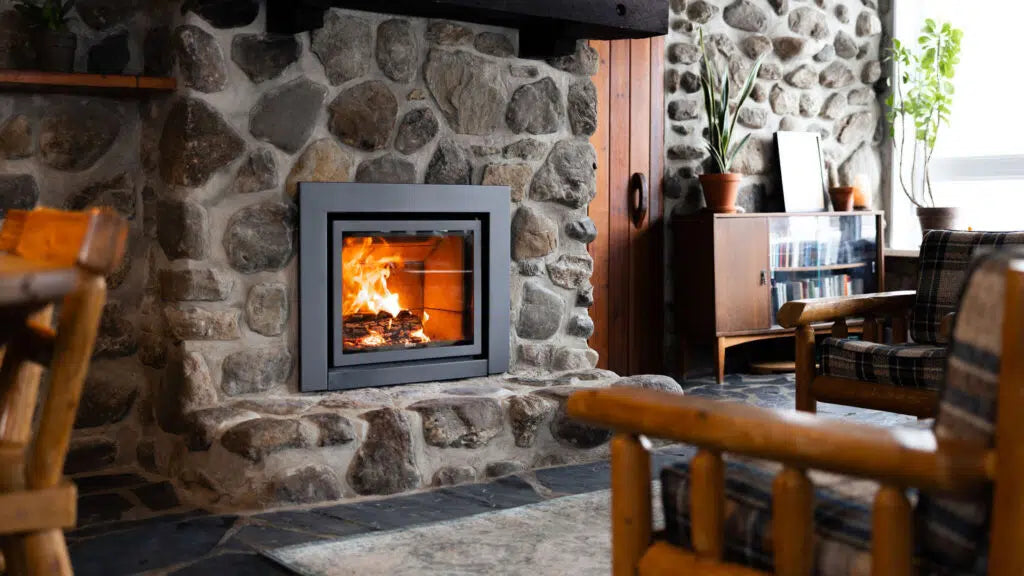

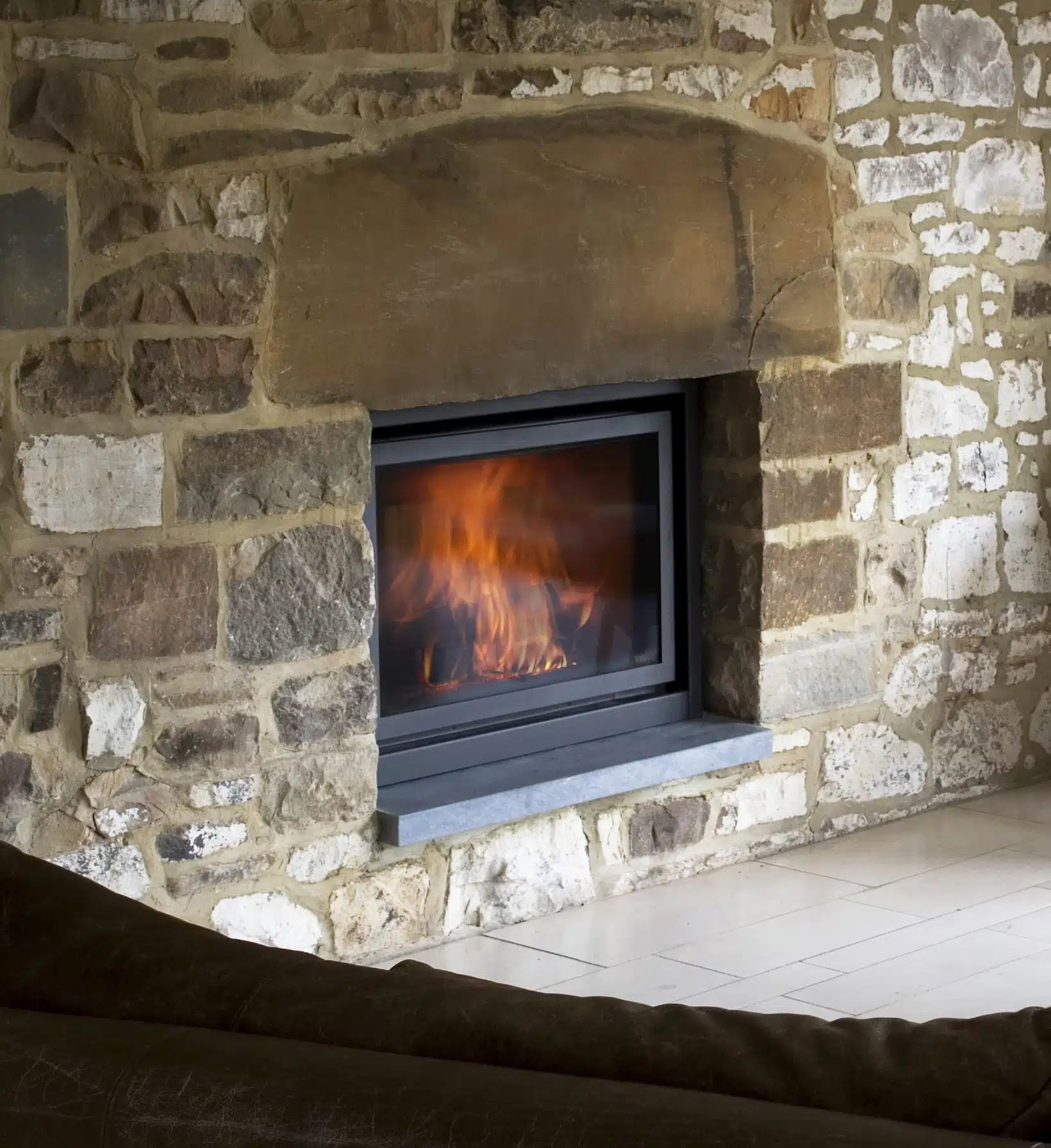

The Stûv 16-in brings the Stûv 16 family's signature restraint to an insert format, sized to retrofit cleanly into an existing masonry hearth. Same clean architectural lines, same removable-key door operation, same automatic combustion. A modern insert for a traditional hearth.

Design highlights

• Perfectly balanced straight lines that read as architectural rather than mechanical
• Frameless hinged door opened with a removable key, so no handle is visible
• Large viewing area that maximizes the presence of the flames
• SBR (Single Burn Rate) automatic control
• EPA certified combustion with strong efficiency figures
• Chimney Ø 6″ or Ø 7″
• Mandatory finishing frame specified at quote (thin-edge or picture-type)

Size options

Three chamber sizes let you match the insert to the existing hearth opening.

• s[16]in 58: 22 ⅞″ W × 23 ⅞″ H
• s[16]in 68: 26 ¾″ W × 23 ⅞″ H
• s[16]in 78: 30 ¾″ W × 23 ⅞″ H

Performance by size

• 58: 27,015 BTU/h EPA, up to 65,000 BTU/h max, 71% efficiency, roughly 1,400 ft² coverage
• 68: 23,727 BTU/h EPA, up to 82,000 BTU/h max, 66% efficiency, roughly 1,650 ft² coverage
• 78: 27,092 BTU/h EPA, up to 86,000 BTU/h max, 67% efficiency, roughly 2,100 ft² coverage
